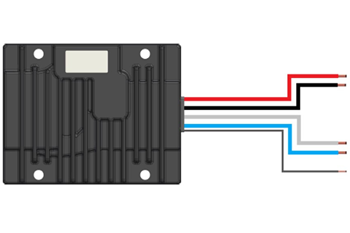

Delta AP-P300AM A is a dc-dc converter with outstanding efficiency and power density. The compact module designed for battery charging and auxiliary supply and can deliver power up to maximum of 280W.
Various protection like input over voltage, under voltage protection, output under voltage, output short-circuit, output over voltage more makes solution safe and reliable.

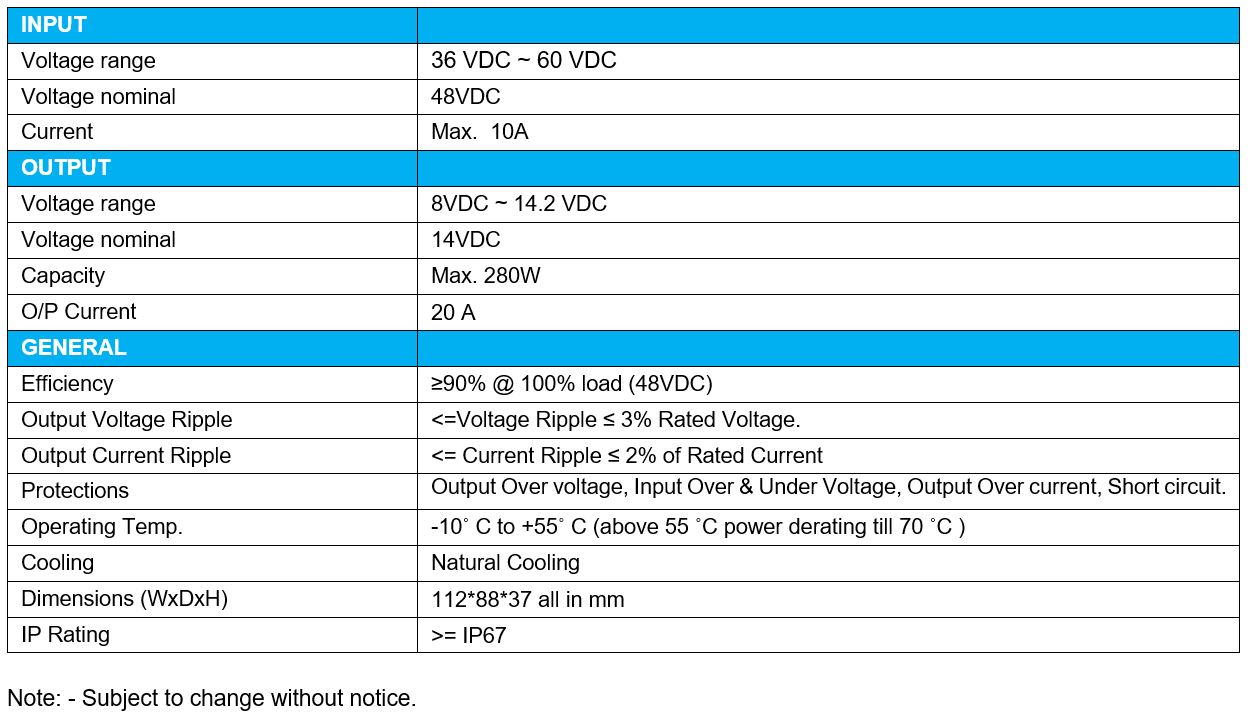

Main Features :-
- Wide Input Output range: 36 to 60VDC
- Efficiency, ≥90% • Max capacity 280W.
- Protections – Input Over voltage, Under Voltage, Output over Voltage, under voltage, Short Circuit Protection.
- IP67
- Operating Temperature : -10° to 70°C (Power Derating to 155W after 55°C)
