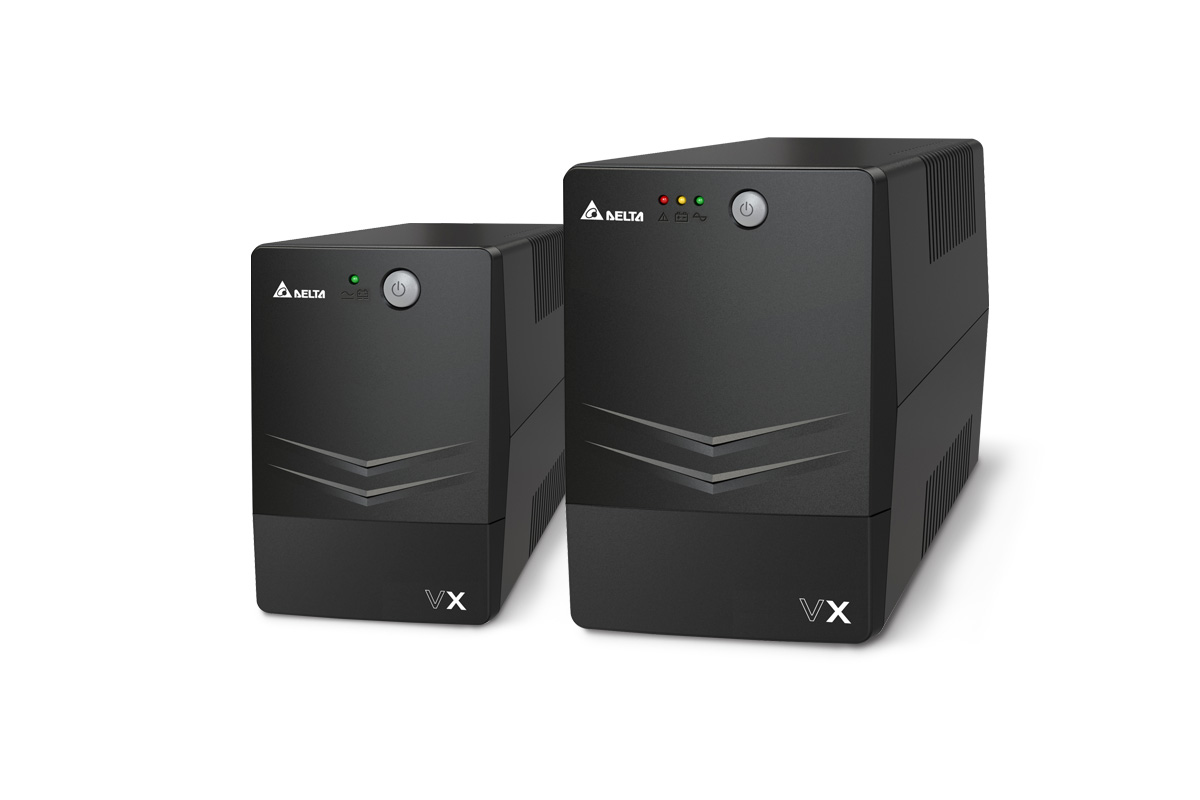

VX 600/1000 VA

Reliability

• The integrated AVR (Automatic Voltage Regulation) stabilizes the output voltage for better power quality
• Excellent microprocessor control enables accurate detection of power frequency for higher reliability
• Wide input voltage range allows the UPS to work in harsh electrical environments and reduces battery discharging time
• Batteries are automatically recharged even when the UPS is in off mode and the UPS can start without mains (Cold-Start)
• UPS is able to restart automatically while utility power is recovering
• Surge protection defends your critical load against damage

Convenience

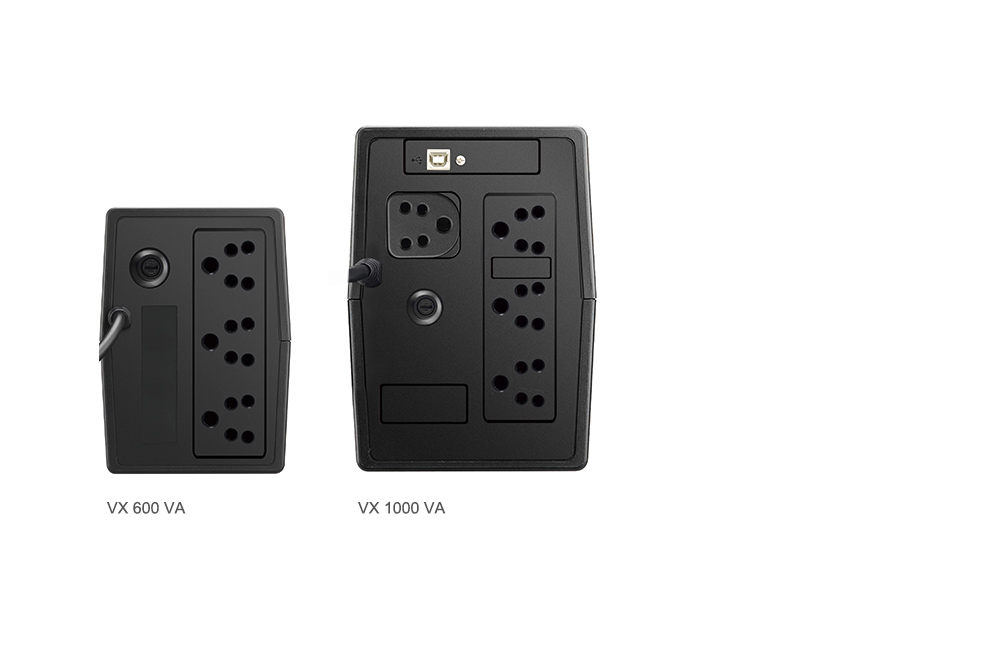

• Several standard Indian sockets simplify the connectivity to computer and IT peripherals
• Compact size saves more space for critical equipment

Manageability

• Standard USB communication port enhances monitoring and manageability (Only applicable for 1000VA model)
• Advanced UPS management software provides remote shutdown and control

1. Model
2. VX-600VA, VX-1000VA

3. ---

4. Power Rating
5. ⦁ VX-600VA: 600 VA / 360 W
   ⦁ VX-1000VA: 1000 VA / 600 W

6. ---

7. Input
8. Nominal Voltage: 230 Vac
9. Voltage Range: 140-300 Vac (full load)
10. Frequency Range: 50/60 Hz

11. ---

12. Output
13. Voltage: 230 Vac ± 10% (Battery mode)
14. Frequency Range: 50/60 Hz ± 1 Hz
15. Waveform (Batt. Mode): Simulated Sinewave
16. Receptacle
    ⦁ VX-600VA: India Socket x 3
    ⦁ VX-1000VA: India Socket x 4

17. ---

18. Battery
19. Battery Type & Number
    ⦁ VX-600VA: 12V/7AH x 1
    ⦁ VX-1000VA: 12V/7AH x 2
20. Typical Recharge Time: 4~6 hours to 90%
21. Cold Start: Yes

22. ---

23. Indicator
24. LED

25. ---

26. Interface
    Standard
    ⦁ VX-600VA: N/A
    ⦁ VX-1000VA: USB port x 1

27. ---

28. Environment
29. Operating Temperature: 0~40ºC
30. Altitude: 0-1000 m
31. Relative Humidity: 0~90% RH (Non-condensing)
32. Noise Level: < 40 dB

33. ---

34. Conformance
35. Safety: BIS

36. ---

37. Physical
38. Dimensions (W x D x H)
    ⦁ VX-600VA: 101 x 279 x 142 mm
    ⦁ VX-1000VA: 130 x 320 x 182 mm
39. Net Weight
    ⦁ VX-600VA: 4.2 kg
    ⦁ VX-1000VA: 7.8 kg

40. ---

41. All specifications are subject to change without prior notice.
