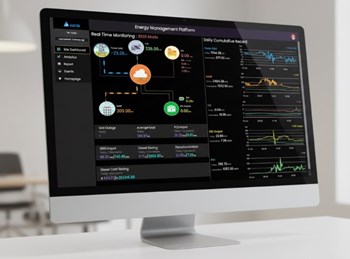

Energy Management Solutions (EMS)

Supports PV Smoothing, Peak shaving, Energy shifting and Frequency Regulation
Features a 10” industrial-grade HD display panel PC
Compatible with Modbus TCP/RTU, CAN, and serial communication protocols
Includes built-in web server for remote monitoring and control
Provides real-time and historical data logging with event storage capability

Product Introduction

Tools & Services

Product Introduction
Tools & Services
Contact Us

Product Introduction

Applications

Dimensions HXWXD (mm)

Cabinet: 250 x 530 x 190 LxWxD
Display HMI: 198 x 258 x 57.5 (mm)

Processor Specifications

Powered by an Intel® Celeron J1900 (2.42GHz) processor with 4GB DDR3 RAM (expandable to 8GB) and a 128GB mSATA SSD.

User Interface

8 DO / 4 DI with 4G Remote Gateway
Real time OS for real time power Control application (Configurable)

Communication

Built-in Remote Server Gateway (DX2100) supporting Modbus TCP/RTU, CAN2.0A, RS-485, and RS-232 communication
Equipped with 5 Serial DB-9 ports, 2 Gigabit Ethernet ports, and USB connectivity

Environment & Safety

Temperature: -10~50 °C (operating) / -20~60 °C (storage) with 0-95% RH
Altitude: 2000 m (operating) / 12200 m (non-operating)
