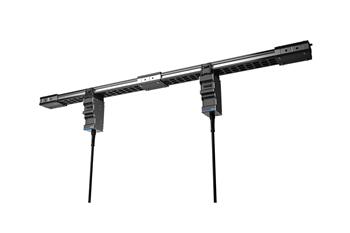

BR Series, 250-2000A

Customer Value


• Successive plug-in slots are available for expansion and power distribution. Data centers can use them freely
• Ultra safe solution that satisfies the requirements of data centers
• Conforms to different standards, depending on market or customer needs, such as IEC, CNS and GB
• Space-saving and weight-saving solution that overcomes space and loading problems of the data center
• Highly integrated composite materials that significantly reduce EMC and protect precision devices in the data center, and are safe for human health

Product Advantages

Busway Body

• Wide power ratings ranging from 250A to 2000A
• Up to 200% neutral
• Highly integrated cast resin technology with epoxy inside
• Pole locations can be reserved or customer can choose the continuous plug-in units upon request
• Numerous standard lengths are available, such as 1M, 2M, 3M, 4M
• Length can be customized upon customer request
• IP protection level up to IP55

Plug-in Unit

• Easy expansion, plug and play and hot swappable without interruption
• No special tools required for installation
• Users can use a single module or multiple modules in parallel
• Highly customized plug-in units work with power meters and circuit breakers from major vendors
• Monitoring module is available for options

Conductor Material

• Users can select copper or aluminum types as needed
• Conductivity of copper conductor is above 99.9%
• Copper conductors are entirely tin plated for optimum conductivity and contact reliability

Resin Material

• Uses epoxy cast resin technology that is highly insulating (Class F 155℃ ) to enhance safety and reliability
• Fire resistance, waterproof, insulation rating, resistance to chemical and corrosion level compliant with industrial standards
• Guaranteed high reliability even in harsh environmental conditions (up to IP55)

Customer Benefits

Safe

• Installation: Attentive foolproof designs are available for every installation step
• Operation: Tool-less design for users to easily install plug-in units
• Compliant with IEC 61439 / UL 857

Reliable

• Minimizes risk from the stronger structure during lifting and assembly on data center sites
• Shield technology ensures optimum sequencing of the conductor. The integrated composite materials reduce EMC significantly and mitigate the interference to precision devices
• No maintenance is required

Efficient

• Unconstrained by space or location, the busway can be designed effectively and installed without professional technicians
• The plug-in unit adopts a modular design that can be expanded simply and quickly
• Customers can save time on waiting for materials if there is any change in design
• Users can save time and costs on installation, expansion, and alteration

Busway for Data Center Applications

With the recent wave of Big Data and IoT, data centers are responsible for more computing, communication and storage functions. In addition to the increase of their scope, the power density of a single rack cabinet has gradually increased. Effective space utilization is a great challenge for data center construction.

The Delta Cast Resin Busway System BR Series is exclusive for data center applications. Thanks to the epoxy insulation technology, it has a compact structure and size, as well as low EMC that allows it to overcome space limitations in server rooms. Data center designers can easily do wiring construction close to data cables without fear of an impact on their health due to low electromagnetic radiation.

In addition, the plug-in unit can be customized per customers’ requirement. It is flexible for use with different power supply systems of server racks. The plug-in unit also applies the flexible successive plug-in slots and is hot swappable. Therefore, it is not constrained by data center space. Customers can carry out expansion or distribution anywhere, which is very flexible.

1. Busway
2. Rating: 250/400/600/800/1000/1250/1600/2000 A
3. Rated voltage: 1000V
4. Frequency: 50/60 Hz
5. Conductor:
   Copper purity: 99.9%, conductivity: 99.9% IACS
   Aluminum purity: 98.8%, conductivity: 56.0% IACS
6. Conductor plating: Tin plating (Std)
7. Insulation material: Epoxy cast resin
8. Insulation class: Class F (155℃)
9. Enclosure/ housing: Epoxy/ Aluminum
10. Fire protection: UL94 V0
11. Ingress protection rating: IP20; IP55 (optional)
12. Mechanical Impact: IK10
13. Earthquake test: 0.8 g [magnitude >7]; Zone 4

14. ---

15. Plug-in Unit
16. Contact design: Plug-in type
17. Type:
    Rv: mounted to busway section vertically
    Rh: mounted to busway section horizontally
18. Configuration:
    Plug-in unit w/ MCB/ELCB/RCBO
    Plug-in unit w/ MCB/RCB + Socket-outlets
    Plug-in unit w/ MCB/RCBO + Power Meter
    Plug-in unit w/ MCB + Over Temperature Detect System
19. Max. Rating: 400A
20. MCCB brands: ABB(Std.), Mitsubishi, Fuji, GE, Schneider or Customer specified
21. Ingress protection rating: IP20; IP42/55 (optional)
22. Panel coating: Powder coated paint
23. Color: RAL 9011/ RAL9003

24. ---

25. General Data
26. Standards:
    IEC61439, IEC60529, IEC60331, IEC60332
    CNS14286, CNS12514, CNS14165, CNS11073
    UL857
27. Ambient temperature: -20℃ /+50℃ avg. 35℃
28. Altitude: Below 2000 m from sea level

29. ---

1. Copper
2. Model: BRC02
3. Rated current: 250A
4. Impedance values*:
   Resistance R₂₀: 213.0 μΩ/m
   Resistance R₈₀: 263.2 μΩ/m
   Resistance X₅₀: 138.1 μΩ/m
   Impedance Z₅₀: 297.2 μΩ/m
   Resistance X₆₀: 165.7 μΩ/m
   Impedance Z₆₀: 311.0 μΩ/m
5. Conductor Cross-section Area:
   L1,L2,L3: 50 mm^²
   N (100%): 50 mm^²
   G (Internal): 50 mm^²
6. Dimensions (W x H): 117 x 58 mm
7. Weight: 12 kg/m

8. ---

9. Model: BRC04
10. Rated current: 400A
11. Impedance values*:
    Resistance R₂₀: 178.0 μΩ/m
    Resistance R₈₀: 220.0 μΩ/m
    Resistance X₅₀: 129.5 μΩ/m
    Impedance Z₅₀: 255.3 μΩ/m
    Resistance X₆₀: 155.4 μΩ/m
    Impedance Z₆₀: 269.3 μΩ/m
12. Conductor Cross-section Area:
    L1,L2,L3: 72.5 mm^²
    N (100%): 72.5 mm^²
    G (Internal): 72.5 mm^²
13. Dimensions (W x H): 117 x 58 mm
14. Weight: 13 kg/m

15. ---

16. Model: BRC06
17. Rated current: 600A
18. Impedance values*:
    Resistance R₂₀: 117.8 μΩ/m
    Resistance R₈₀: 145.6 μΩ/m
    Resistance X₅₀: 87.8 μΩ/m
    Impedance Z₅₀: 170.0 μΩ/m
    Resistance X₆₀: 105.3 μΩ/m
    Impedance Z₆₀: 179.7 μΩ/m
19. Conductor Cross-section Area:
    L1,L2,L3: 145 mm^²
    N (100%): 145 mm^²
    G (Internal): 72.5 mm^²
20. Dimensions (W x H): 117 x 58 mm
21. Weight: 15 kg/m

22. ---

23. Model: BRC08
24. Rated current: 800A
25. Impedance values*:
    Resistance R₂₀: 74.6 μΩ/m
    Resistance R₈₀: 92.2 μΩ/m
    Resistance X₅₀: 67.8 μΩ/m
    Impedance Z₅₀: 114.4 μΩ/m
    Resistance X₆₀: 81.3 μΩ/m
    Impedance Z₆₀: 122.9 μΩ/m
26. Conductor Cross-section Area:
    L1,L2,L3: 232 mm^²
    N (100%): 232 mm^²
    G (Internal): 116 mm^²
27. Dimensions (W x H): 117 x 73 mm
28. Weight: 23 kg/m

29. ---

30. Model: BRC10
31. Rated current: 1000A
32. Impedance values*:
    Resistance R₂₀: 55.8 μΩ/m
    Resistance R₈₀: 69.0 μΩ/m
    Resistance X₅₀: 49.8 μΩ/m
    Impedance Z₅₀: 85.1 μΩ/m
    Resistance X₆₀: 59.8 μΩ/m
    Impedance Z₆₀: 91.3 μΩ/m
33. Conductor Cross-section Area:
    L1,L2,L3: 307.4 mm^²
    N (100%): 307.4 mm^²
    G (Internal): 153.7 mm^²
34. Dimensions (W x H): 117 x 86 mm
35. Weight: 32 kg/m

36. ---

37. Model: BRC12
38. Rated current: 1250A
39. Impedance values*:
    Resistance R₂₀: 37.2 μΩ/m
    Resistance R₈₀: 46.0 μΩ/m
    Resistance X₅₀: 38.5 μΩ/m
    Impedance Z₅₀: 60.0 μΩ/m
    Resistance X₆₀: 46.2 μΩ/m
    Impedance Z₆₀: 65.2 μΩ/m
40. Conductor Cross-section Area:
    L1,L2,L3: 464 mm^²
    N (100%): 464 mm^²
    G (Internal): 232 mm^²
41. Dimensions (W x H): 117 x 113 mm
42. Weight: 46 kg/m

43. ---

44. Model: BRC16
45. Rated current: 1600A
46. Impedance values*:
    Resistance R₂₀: 24.6 μΩ/m
    Resistance R₈₀: 30.4 μΩ/m
    Resistance X₅₀: 25.5 μΩ/m
    Impedance Z₅₀: 39.7 μΩ/m
    Resistance X₆₀: 30.6 μΩ/m
    Impedance Z₆₀: 43.1 μΩ/m
47. Conductor Cross-section Area:
    L1,L2,L3: 696 mm^²
    N (100%): 696 mm^²
    G (Internal): 348 mm^²
48. Dimensions (W x H): 117 x 153 mm
49. Weight: 59 kg/m

50. ---

51. Model: BRC20
52. Rated current: 2000A
53. Impedance values*:
    Resistance R₂₀: 18.8 μΩ/m
    Resistance R₈₀: 23.2 μΩ/m
    Resistance X₅₀: 20.1 μΩ/m
    Impedance Z₅₀: 30.7 μΩ/m
    Resistance X₆₀: 24.1 μΩ/m
    Impedance Z₆₀: 33.5 μΩ/m
54. Conductor Cross-section Area:
    L1,L2,L3: 928 mm^²
    N (100%): 928 mm^²
    G (Internal): 464 mm^²
55. Dimensions (W x H): 117 x 193 mm
56. Weight: 65 kg/m

57. ---

58. Aluminum
59. Model: BRA02
60. Rated current: 250A
61. Impedance values*:
    Resistance R₂₀: 312.0 μΩ/m
    Resistance R₈₀: 385.6 μΩ/m
    Resistance X₅₀: 150.0 μΩ/m
    Impedance Z₅₀: 413.7 μΩ/m
    Resistance X₆₀: 180.0 μΩ/m
    Impedance Z₆₀: 425.5 μΩ/m
62. Conductor Cross-section Area:
    L1,L2,L3: 100 mm^²
    N (100%): 100 mm^²
    G (Internal): 50 mm^²
63. Dimensions (W x H): 117 x 58 mm
64. Weight: 11 kg/m

65. ---

66. Model: BRA04
67. Rated current: 400A
68. Impedance values*:
    Resistance R₂₀: 213.0 μΩ/m
    Resistance R₈₀: 263.2 μΩ/m
    Resistance X₅₀: 138.1 μΩ/m
    Impedance Z₅₀: 297.2 μΩ/m
    Resistance X₆₀: 165.7 μΩ/m
    Impedance Z₆₀: 311.0 μΩ/m
69. Conductor Cross-section Area:
    L1,L2,L3: 145 mm^²
    N (100%): 145 mm^²
    G (Internal): 72.5 mm^²
70. Dimensions (W x H): 117 x 58 mm
71. Weight: 12 kg/m

72. ---

73. Model: BRA06
74. Rated current: 600A
75. Impedance values*:
    Resistance R₂₀: 122.0 μΩ/m
    Resistance R₈₀: 150.8 μΩ/m
    Resistance X₅₀: 100.0 μΩ/m
    Impedance Z₅₀: 180.9 μΩ/m
    Resistance X₆₀: 120.0 μΩ/m
    Impedance Z₆₀: 192.7 μΩ/m
76. Conductor Cross-section Area:
    L1,L2,L3: 232 mm^²
    N (100%): 232 mm^²
    G (Internal): 116 mm^²
77. Dimensions (W x H): 117 x 73 mm
78. Weight: 14 kg/m

79. ---

80. Model: BRA08
81. Rated current: 800A
82. Impedance values*:
    Resistance R₂₀: 93.5 μΩ/m
    Resistance R₈₀: 115.5 μΩ/m
    Resistance X₅₀: 59.8 μΩ/m
    Impedance Z₅₀: 130.1 μΩ/m
    Resistance X₆₀: 71.7 μΩ/m
    Impedance Z₆₀: 136.0 μΩ/m
83. Conductor Cross-section Area:
    L1,L2,L3: 307.4 mm^²
    N (100%): 307.4 mm^²
    G (Internal): 153.7 mm^²
84. Dimensions (W x H): 117 x 86 mm
85. Weight: 21 kg/m

86. ---

87. Model: BRA10
88. Rated current: 1000A
89. Impedance values*:
    Resistance R₂₀: 62.6 μΩ/m
    Resistance R₈₀: 77.4 μΩ/m
    Resistance X₅₀: 46.7 μΩ/m
    Impedance Z₅₀: 90.3 μΩ/m
    Resistance X₆₀: 56.0 μΩ/m
    Impedance Z₆₀: 95.5 μΩ/m
90. Conductor Cross-section Area:
    L1,L2,L3: 464 mm^²
    N (100%): 464 mm^²
    G (Internal): 232 mm^²
91. Dimensions (W x H): 117 x 113 mm
92. Weight: 30 kg/m

93. ---

94. Model: BRA12
95. Rated current: 1250A
96. Impedance values*:
    Resistance R₂₀: 49.7 μΩ/m
    Resistance R₈₀: 61.4 μΩ/m
    Resistance X₅₀: 40.8 μΩ/m
    Impedance Z₅₀: 73.8 μΩ/m
    Resistance X₆₀: 49.0 μΩ/m
    Impedance Z₆₀: 78.6 μΩ/m
97. Conductor Cross-section Area:
    L1,L2,L3: 580 mm^²
    N (100%): 580 mm^²
    G (Internal): 290 mm^²
98. Dimensions (W x H): 117 x 133 mm
99. Weight: 42 kg/m

100. ---

101. Model: BRA16
102. Rated current: 1600A
103. Impedance values*:
     Resistance R₂₀: 41.8 μΩ/m
     Resistance R₈₀: 51.7 μΩ/m
     Resistance X₅₀: 32.7 μΩ/m
     Impedance Z₅₀: 61.1 μΩ/m
     Resistance X₆₀: 39.2 μΩ/m
     Impedance Z₆₀: 64.8 μΩ/m
104. Conductor Cross-section Area:
     L1,L2,L3: 928 mm^²
     N (100%): 928 mm^²
     G (Internal): 464 mm^²
105. Dimensions (W x H): 117 x 193 mm
106. Weight: 55 kg/m

107. ---

108. Model: BRA20
109. Rated current: 2000A
110. Impedance values*:
     Resistance R₂₀: 25.4 μΩ/m
     Resistance R₈₀: 31.4 μΩ/m
     Resistance X₅₀: 19.0 μΩ/m
     Impedance Z₅₀: 36.7 μΩ/m
     Resistance X₆₀: 22.8 μΩ/m
     Impedance Z₆₀: 38.8 μΩ/m
111. Conductor Cross-section Area:
     L1,L2,L3: 1160 mm^²
     N (100%): 1160 mm^²
     G (Internal): 580 mm^²
112. Dimensions (W x H): 117 x 233 mm
113. Weight: 59 kg/m

114. ---

115. * Impedance values are for busway operating at 20/80℃ temperature.

1. Rating: 16A
   Model: Rv-A3P16
   Dimensions (H x D x W): 330 x 165 x 100 mm
   IP Rating: IP42
   Weight: 3 kg

2. ---

3. Rating: 32 A
   Model: Rv-A3P32
   Dimensions (H x D x W): 330 x 165 x 100 mm
   IP Rating: IP42
   Weight: 3 kg

4. ---

5. Rating: 63A
   Model: Rv-A3P63
   Dimensions (H x D x W): 330 x 165 x 100 mm
   IP Rating: IP42
   Weight: 5 kg

6. ---

7. Rating: 125A
   Model: Rv-A3P125
   Dimensions (H x D x W): 330 x 165 x 200 mm
   IP Rating: IP42
   Weight: 12 kg

8. ---

9. Rating: 250A
   Model: Rv-A3P250
   Dimensions (H x D x W): 330 x 165 x 300 mm
   IP Rating: IP42
   Weight: 20 kg

10. ---

11. Rating: 400A
    Model: Rv-A3P400
    Dimensions (H x D x W): 330 x 165 x 300 mm
    IP Rating: IP42
    Weight: 26 kg

12. ---

1. Rating: 16A
   Model: Rh-A3P16
   Dimensions (H x D x W): 250 x 243 x 100 mm
   IP Rating: IP42
   Weight: 3 kg

2. ---

3. Ratin: 32A
   Model: Rh-A3P32
   Dimensions (H x D x W): 250 x 243 x 100 mm
   IP Rating: IP42
   Weight: 3 kg

4. ---

5. Rating: 63A
   Model: Rh-A3P63
   Dimensions (H x D x W): 250 x 243 x 100 mm
   IP Rating: IP42
   Weight: 5 kg

6. ---

7. Rating: 125A
   Model: Rh-A3P125
   Dimensions (H x D x W): 250 x 243 x 200 mm
   IP Rating: IP42
   Weight: 12 kg

8. ---

9. Rating: 250A
   Model: Rh-A3P250
   Dimensions (H x D x W): 250 x 243 x 300 mm
   IP Rating: IP42
   Weight: 20 kg

10. ---

11. Rating: 400A
    Model: Rh-A3P400
    Dimensions (H x D x W): 250 x 243 x 300 mm
    IP Rating: IP42
    Weight: 26 kg

12. ---

1. Rating: 250A
2. Model: ECM-250 MCCB
   Dimensions (W x H x D): 480 x 300 x 240 mm
   IP Rating: IP42
   Weight: 17 kg
3. Model: ECT-250 Terminal
   Dimensions (W x H x D): 430 x 300 x 160 mm
   IP Rating: IP42
   Weight: 15 kg

4. ---

5. Rating: 400A
6. Model: ECM-400 MCCB
   Dimensions (W x H x D): 480 x 300 x 240 mm
   IP Rating: IP42
   Weight: 19 kg
7. Model: ECT-400 Terminal
   Dimensions (W x H x D): 430 x 300 x 160 mm
   IP Rating: IP42
   Weight: 15 kg

8. ---

9. Rating: 630A
10. Model: ECM-630 MCCB
    Dimensions (W x H x D): 480 x 300 x 240 mm
    IP Rating: IP42
    Weight: 20 kg
11. Model: ECT-630 Terminal
    Dimensions (W x H x D): 430 x 300 x 160 mm
    IP Rating: IP42
    Weight: 17 kg

12. ---

13. Rating: 800A
14. Model: BRC086EB Terminal
    Dimensions (W x H x D): 500 x 650 x 220 mm
    IP Rating: IP42
    Weight: 35 kg

15. ---

16. Rating: 1000A
17. Model: BRC106EB Terminal
    Dimensions (W x H x D): 500 x 650 x 233 mm
    IP Rating: IP42
    Weight: 38 kg

18. ---

19. Rating: 1250A
20. Model: BRC126EB Terminal
    Dimensions (W x H x D): 500 x 650 x 260 mm
    IP Rating: IP42
    Weight: 45 kg

21. ---

22. Rating: 1600A
23. Model: BRC166EB Terminal
    Dimensions (W x H x D): 500 x 650 x 300 mm
    IP Rating: IP42
    Weight: 55 kg

24. ---

25. Rating: 2000A
26. Model: BRC206EB Terminal
    Dimensions (W x H x D): 500 x 650 x 340 mm
    IP Rating: IP42
    Weight: 65 kg

27. ---
