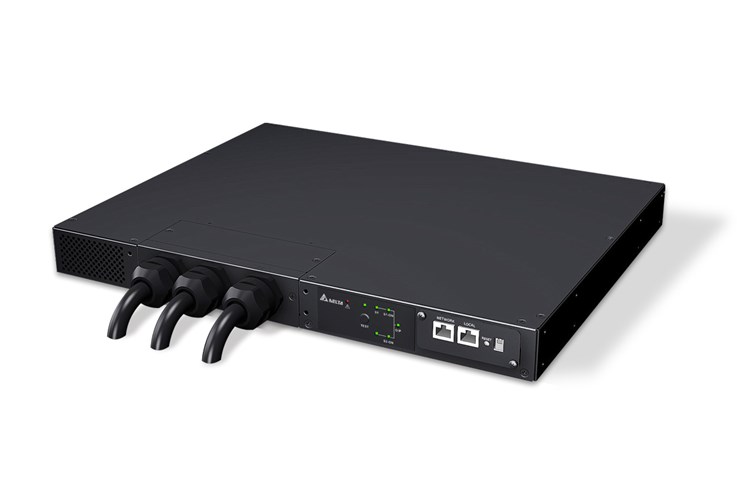

Rack-Mount Static Transfer Switch

Availability

• Adopts SCR with a relay in parallel as a switching device to increase reliability without sacrificing efficiency
• Supports power redundant configurations for high reliability
• Monitors the health of the power source and performs the transfer automatically

Convenience

• Rack-mounted type with 1U size for easy installation and relocation
• Built-in SNMP for remote management
• LED indicators show power flow
• Self-test function

Safety

• Break before make prevents short circuits between two sources

1. Model
2. STS16002SR, STS30002SR

3. ---

4. Rated Current
5. ⦁ STS16002SR: 16A
   ⦁ STS30002SR: 30A⁽¹⁾

6. ---

7. Regulatory
8. ⦁ STS16002SR: CE / UL 62368
   ⦁ STS30002SR: CE

9. ---

10. Nominal Voltage: 200/208/220/230/240 Vac

11. ---

12. Display: LED

13. ---

14. Connection
15. Input
    ⦁ STS16002SR: C20 x2 pcs

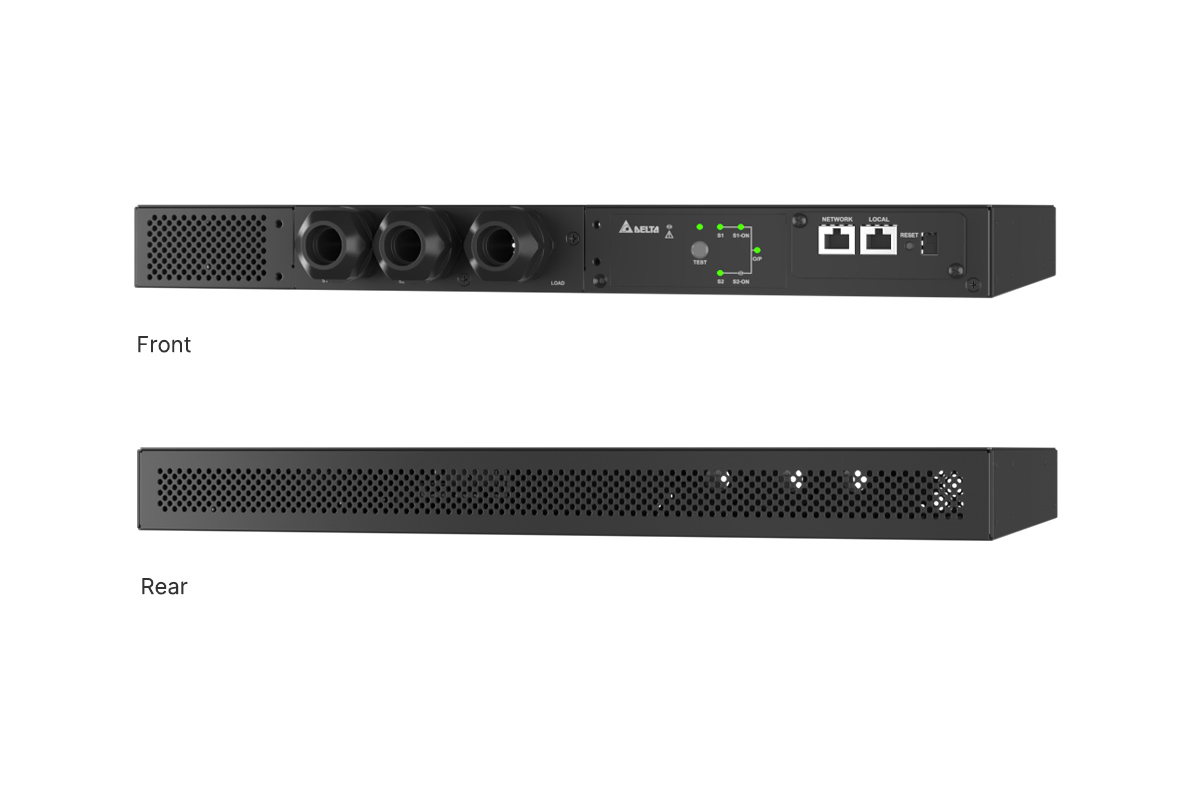

    ⦁ STS30002SR: IEC309 / Hardwired
16. Output

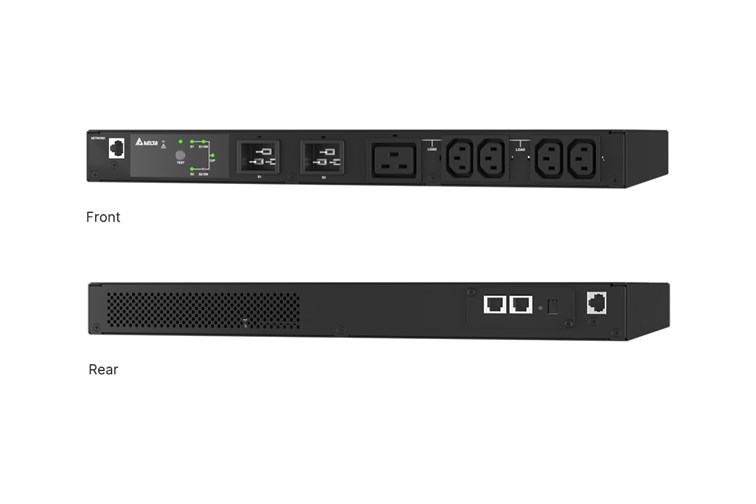

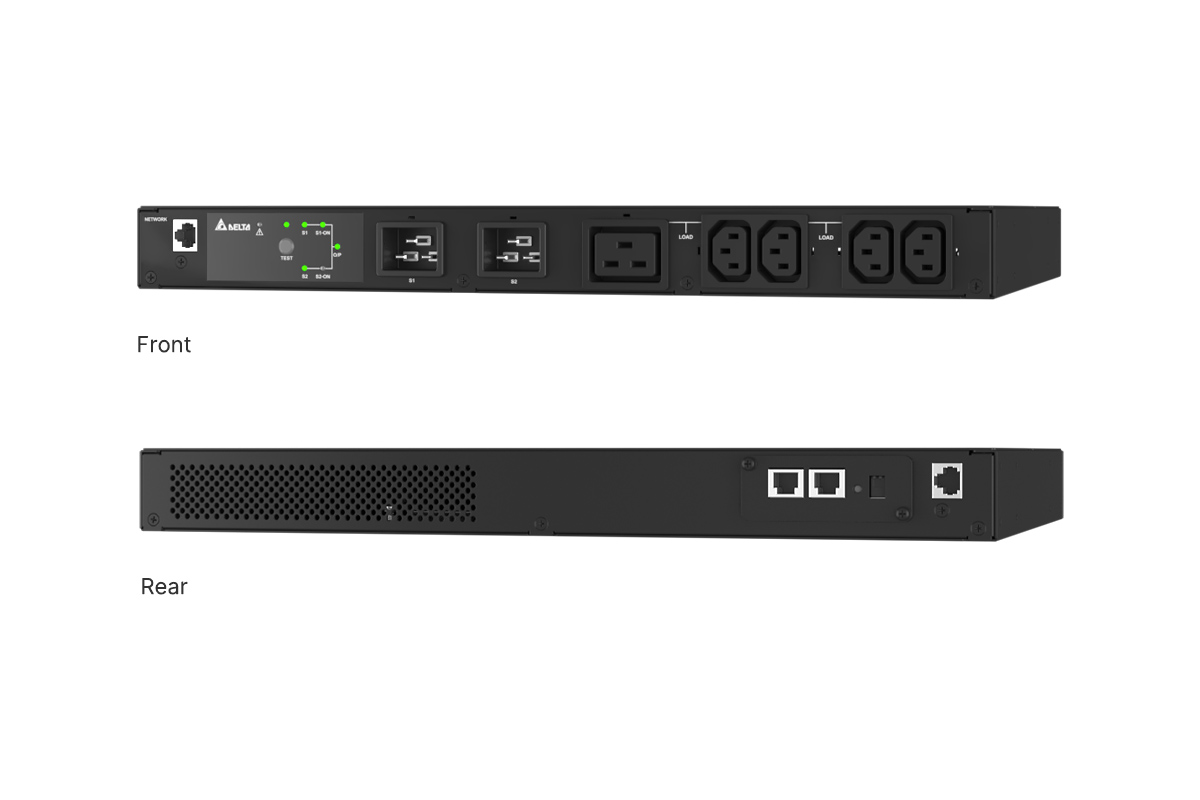

    ⦁ STS16002SR: C13 x4 + C19 x1 pcs
    ⦁ STS30002SR: IEC309 / Hardwired

17. ---

18. Communication: SNMP

19. ---

20. Operating Temperature: 0 to 40℃

21. ---

22. Storage Temperature: -15 to 50℃

23. ---

24. Humidity: 0-95% RH (non-condensing)

25. ---

26. Audible Noise (at one meter) : < 40 dB

27. ---

28. Physical Dimensions (H x W x D)
29. ⦁ STS16002SR: 43 x 440 x 385 mm
    ⦁ STS30002SR: 43 x 440 x 385 mm / 43 x 440 x 390 mm

30. ---

31. Weight
32. ⦁ STS16002SR: 4.85 kg
    ⦁ STS30002SR: 7.6 kg / 6.2 kg

33. ---

34. (1) Under the condition of 35℃; if the environment temperature is 36-40℃, the product should be de-rated to 25.6A.

    All specifications are subject to change without prior notice.
