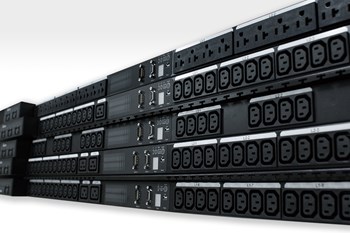

ViFlow Series

Space Saving

• Wider selections for vertical and horizontal installation

Easy to Use, Easy to Install

• Plug and play with international standard power plugs and receptacles
• Complete selections with a variety of sockets and single phase/three phase input voltage
• Tool-less installation with Delta’s standard rack cabinets
• Compatible with both EIA rack and customized rack

Facility Protection

• Branch circuit breaker protection in case of overload or earth fault

Space Saving

• Zero-U, supports side/rear installation

Easy to Use, Easy to Install

• Plug and play with International standard power plugs and receptacles
• Complete selections with a variety of sockets and single phase/three phase input voltage
• Tool-less installation with Delta’s standard rack cabinets
• Compatible with both EIA rack and customized rack

Easy to Manage

• LED current (rms value) display and indicator, easy to catch status on site
• Protect facilities from overload with branch breaker
• Optional inbuilt network module for remote management

1. ---

2. Input Voltage / Phase: 100-120 Vac / 1
3. Rated Current: 16 A
   Plug Type: NEMA L5-20P
   Output Voltage / Phase: 100-120 Vac / 1
   Outputs (Number): NEMA 5-15/20R (8)
   Dimensions (W x H x D): 440 x 44 x 55 mm
   Weight: 1.56 kg
   Certificate: UL / cUL
   Model: PDU7111

4. ---

5. Rated Current: 24 A
   Plug Type: NEMA L5-30P
   Output Voltage / Phase: 100-120 Vac / 1
   Outputs (Number): NEMA 5-15/20R (24)
   Dimensions (W x H x D): 48 x 1250 x 50/90 mm
   Weight: 4.88 kg
   Certificate: UL / cUL
   Model: PDU5113

6. ---

7. Input Voltage / Phase: 200-240 Vac / 1
8. Rated Current: 16A
   Plug Type: NEMA L6-20P
   Output Voltage / Phase: 200-240 Vac / 1
   Outputs (Number): IEC320 C13 (12)
   Dimensions (W x H x D): 440 x 44 x 55 mm
   Weight: 1.64 kg
   Certificate: UL / cUL
   Model: PDU7211

9. ---

10. Rated Current: 16 A
    Plug Type: IEC309-16A-3W
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C13 (12)
    Dimensions (W x H x D): 440 x 44 x 55 mm
    Weight: 1.48 kg
    Certificate: CE, CCC
    Model: PDU7311

11. ---

12. Rated Current: 24 A
    Plug Type: NEMA L6-30P
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C13 (24)
    Dimensions (W x H x D): 48 x 1250 x 50/90 mm
    Weight: 4.92 kg
    Certificate: UL / cUL
    Model: PDU5213

13. ---

14. Rated Current: 32 A
    Plug Type: IEC309-32A-3W
    Output Voltage / Phase:200-240 Vac / 1
    Outputs (Number): IEC320 C19 (4), IEC320 C13 (24)
    Dimensions (W x H x D): 48 x 1250 x 50/90 mm
    Weight: 4.90 kg
    Certificate: CE, CCC
    Model: PDU5315

15. ---

16. Input Voltage / Phase: 200-240 Vac / 3Δ
17. Rated Current: 40 A
    Plug Type: CS8365C
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C13 (12)
    Dimensions (W x H x D): 55 x 1000 x 60/90 mm
    Weight: 9.50 kg
    Certificate: UL / cUL
    Model: PDUD526

18. ---

1. ---

2. Input Voltage / Phase: 100-120 Vac / 1
3. Rated Current: 24 A
   Plug Type: NEMA L5-30P
   Output Voltage / Phase: 100-120 Vac / 1
   Outputs (Number): NEMA 5-15/20R (24)
   Dimensions (W x H x D): 48 x 1250 x 50/90 mm
   Weight: 5.34 kg
   Certificate: UL / cUL
   Model: PDU1113

4. ---

5. Input Voltage / Phase: 200-240 Vac / 1
6. Rated Current: 16 A
   Plug Type: IEC309-16A-3W
   Output Voltage / Phase: 200-240 Vac / 1
   Outputs (Number): IEC320 C19 (3), IEC320 C13 (24)
   Dimensions (W x H x D): 48 x 1250 x 50/90 mm
   Weight: 4.56 kg
   Certificate: CE, CCC
   Model: PDU1311

7. ---

8. Rated Current: 16 A
   Plug Type: IEC309-20A-3W
   Output Voltage / Phase: 200-240 Vac / 1
   Outputs (Number): IEC320 C13 (24)
   Dimensions (W x H x D): 48 x 1250 x 50/90 mm
   Weight: 4.60 kg
   Certificate: UL / cUL
   Model: PDU1211B

9. ---

10. Rated Current: 24 A
    Plug Type: NEMA L6-30P
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C13 (24)
    Dimensions (W x H x D): 48 x 1250 x 50/90 mm
    Weight: 5.24 kg
    Certificate: UL / cUL
    Model: PDU1213

11. ---

12. Rated Current: 24 A
    Plug Type: IEC309-30A-3W
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C19 (4), IEC320 C13 (24)
    Dimensions (W x H x D): 48 x 1250 x 50/90 mm
    Weight: 5.12 kg
    Certificate: UL / cUL
    Model: PDU1313B

13. ---

14. Input Voltage / Phase: 200-240 Vac / 3Δ
15. Rated Current: 28 A
    Plug Type: CS8365C
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C19 (6), IEC320 C13 (30)
    Dimensions (W x H x D): 55 x 1708 x 55 mm
    Weight: 8.20 kg
    Certificate: UL / cUL
    Model: AD-208/50B

16. ---

17. Rated Current: 32 A
    Plug Type: CS8365C
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C19 (6), IEC320 C13 (30)
    Dimensions (W x H x D): 48 x 1780 x 50/100 mm
    Weight: 9.00 kg
    Certificate: CE
    Model: PDUE525

18. ---

19. Rated Current: 32 A
    Plug Type: CS8365C
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C13 (36)
    Dimensions (W x H x D): 48 x 1560 x 50/100 mm
    Weight: 8.00 kg
    Certificate: UL / cUL
    Model: PDU2525

20. ---

21. Input Voltage / Phase: 346-415 Vac / 3Y
22.
23. Rated Current: 32 A
    Plug Type: IEC309-32A-5W
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C19 (3), IEC320 C13 (36)
    Dimensions (W x H x D): 48 x 1660 x 50/100 mm
    Weight: 8.30 kg
    Certificate: CE
    Model: PDU4425

24. ---

25. Rated Current: 32 A
    Plug Type: IEC309-32A-5W
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C19 (3), IEC320 C13 (24)
    Dimensions (W x H x D): 48 x 1535 x 50/100 mm
    Weight: 7.10 kg
    Certificate: CE
    Model: PDU4425-M

26. ---

27. Rated Current: 32 A (UL 24 A)
    Plug Type: IEC309-32A-5W
    Output Voltage / Phase: 200-240 Vac / 1
    Outputs (Number): IEC320 C19 (6), IEC320 C13 (30)
    Dimensions (W x H x D): 55 x 1708 x 55/70 mm
    Weight: 8.00 kg
    Certificate: UL / cUL, CE
    Model: AD-240/32J

28. ---

1. RS232-1: Connect to a PC for remote operation or a firmware upgrade
   RS232-2: Connect to an SNMP card or to another rPDUs

2. ---

1. Temperature
   Operating: 0~45/50˚C*, Storage: -20~65˚C (* 50˚C only available for AD-XXX/XXX)
2. Relative Humidity
   Operating: 5~95%
3. Elevation
   Operating: 0~2000 m, Storage: 0~15000 m

4. ---

1.
2. International standards of power plugs/receptacle
