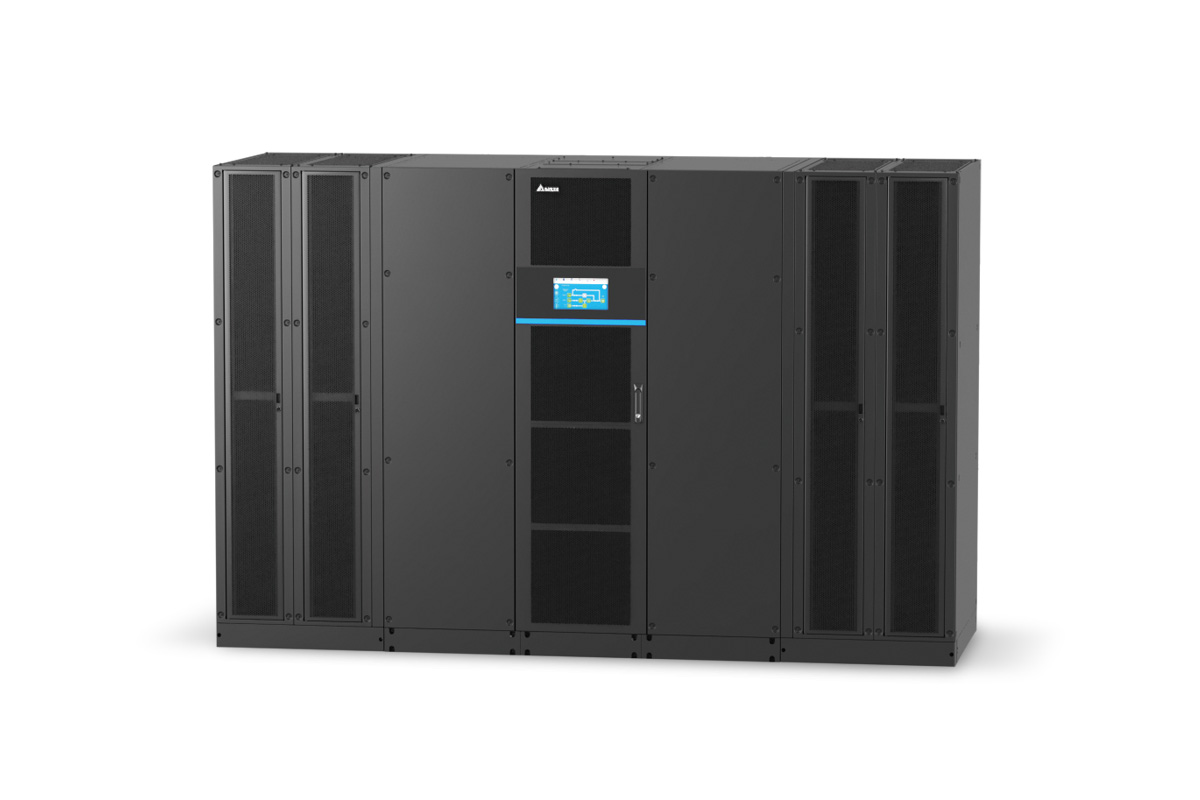

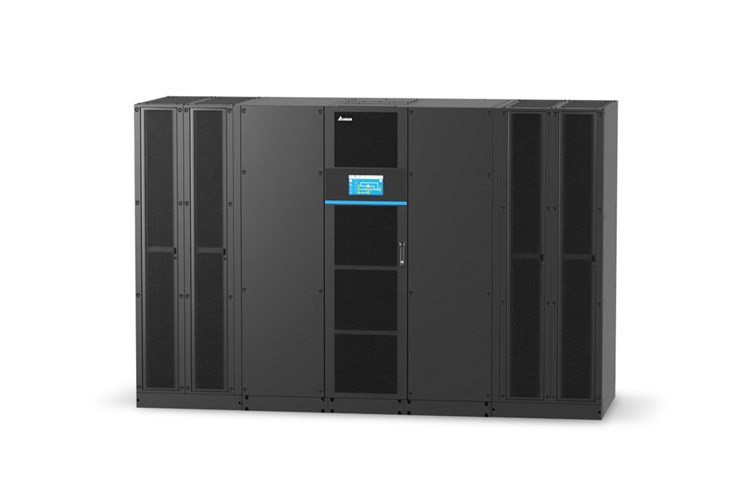

DPM Gen2 Series 250-1750 kVA

OPEX Savings

• AC-AC efficiency up to 97.3%, efficiency optimization at light loads saves energy costs
• Clean mode (voltage independent mode) up to 99% efficient guarantees the optimum power condition while maintaining the highest level of efficiency
• Optimizes energy cost with off-peak charging, avoiding peak-time expense
• Elevates grid stability through responsive demand reduction and fast frequency regulation, triggers upon utility requests for eligible bill subsidies

Impeccable Reliability

• Assures smooth power transitions with integrated Synchronized Multiple Bus (SMB), minimizing transformer inrush currents and maintaining balanced power from dual sources
• Parallels up to 8 units for redundancy or expansion, supported by N+1 internal redundancy in power modular configuration
• Maximizes UPS performance and lifespan with self-diagnosis and key component analysis

Ultimate Availability

• Lithium-ion battery ready. Adjustable battery charging voltage adapts to multiple types of batteries
• Seamless power shifts to generator with an advance power walk-in function, pausing during frequency issues for smooth transitions without unnecessary generator sizing expansion
• Grid interactive application. Provides corrective operation for unstable renewal energy sources with an innovative topology design that handles grid and battery power at the same time
• Easy mounting/cabling that supports both top and bottom cable entry and full front access

1. Model
2. DPM-250K, DPM-500K⁽¹⁾, DPM-750K⁽¹⁾, DPM-1000K, DPM-1250K, DPM-1500K⁽¹⁾, DPM-1750K⁽¹⁾

3. ---

4. Power Rating
5. ⦁ DPM-250K: 250 kVA / 250 kW
   ⦁ DPM-500K: 500 kVA / 500 kW
   ⦁ DPM-750K: 750 kVA / 750 kW
   ⦁ DPM-1000K: 1000 kVA / 1000 kW
   ⦁ DPM-1250K: 1250 kVA / 1250 kW
   ⦁ DPM-1500K: 1500 kVA / 1500 kW
   ⦁ DPM-1750K: 1750 kVA / 1750 kW
6. Parallel Configuration: Up to 8 units

7. ---

8. Input
9. Nominal Voltage: 380/400/415 Vac, 3P3W+PE or 3P4W+PE
10. Voltage Range: 323-477 Vac (100% load)
11. Frequency Range: 40-70 Hz
12. Total Harmonic Distortion (THDi): < 3% (100% resistive load)
13. Power Factor: > 0.99 (100% load)
14. Short Circuit Withstand Rating
    ⦁ DPM-250-750K: 65 kA
    ⦁ DPM-1000-1750K: 100 kA
15. Connection: Single or dual feed

16. ---

17. Output
18. Nominal Voltage: 380/400/415 Vac, 3P3W+PE or 3P4W+PE
19. Voltage Regulation: ±1% (static)
20. Frequency: 50/60 ± 0.05 Hz
21. Total Harmonic Distortion (THDv): < 1% (linear load)
22. Power Factor: 1
23. Overload Capability: < 110%: continues, 110-125%: 10 mins, 126-150%: 1 min, > 150%: 1 sec
24. Current Crest Ratio: 3:1

25. ---

26. Efficiency
27. Online Mode: Up to 97.3%
28. Clean Mode (VI): Up to 99%

29. ---

30. Battery
31. Battery Type: VRLA, Vented lead-acid, Lithium-ion, Ni-Zinc
32. Nominal Voltage: 480 Vdc
33. Quantity: 34-35⁽²⁾, 36-46 pcs (VRLA 12 V)
34. Charge Current
    ⦁ DPM-250K: 125 A
    ⦁ DPM-500K: 250 A
    ⦁ DPM-750K: 375 A
    ⦁ DPM-1000K: 500 A
    ⦁ DPM-1250K: 625 A
    ⦁ DPM-1500K: 750 A
    ⦁ DPM-1750K: 875 A
35. Protection Design: Battery shunt trip x1, Battery temperature detection x4, Battery breaker status dry contact x1

36. ---

37. Communication Interfaces
38. Display: 10-inch color touchscreen
39. Port: Smart slot x2, Modbus (RS-485) port x1, REPO port x1, Input dry contact x6, Output dry contact x6, Synchronized Multiple Bus (SMB) x2, Breaker status detection x4, EMS/Console port x1, Ethernet x1
40. Remote Emergency Power Off (REPO): Optional
41. Protocols: SNMP, Modbus RTU, Modbus TCP/IP, HTTP(S), SNTP, SMTP, BOOTP, DHCP

42. ---

43. Physical
44. Dimensions (W x D x H)
    ⦁ DPM-250K: 1030 x 990 x 2000 mm
    ⦁ DPM-1000K: 3070 x 990 x 2000 mm
    ⦁ DPM-1250K: 3400 x 990 x 2000 mm
45. Net Weight
    ⦁ DPM-250K: 675.5 kg
    ⦁ DPM-1000K: 2450 kg
    ⦁ DPM-1250K: 2836.3 kg

46. ---

47. Environment
48. Operating Temperature: 0 to 40°C
49. Humidity: 0-95% (non-condensing)
50. Altitude: 0-2,000 m (derating 1%/100m from 1,001-2,000 m)

51. ---

52. Conformance
53. Safety: IEC 62040-1, CE
54. EMC: IEC 62040-2
55. Performance: IEC 62040-3
56. Sustainability: RoHS, REACH, Energy Star

57. ---

58. Features
59. Standard
    ▪️ Advance Power Walk-in for Generator
    ▪️ Backfeed Protection with Contactor
    ▪️ Burn-in Test without Load Bank
    ▪️ Cold Start Function
    ▪️ Synchronized Multiple Bus (SMB)
    ▪️ Frequency Conversion
    ▪️ Battery Shunt Trip
    ▪️ Auxiliary Power 48 Vdc for Shunt Trip
    ▪️ Failure Prediction
60. Optional
    ▪️ Grid Interactive
    ▪️ Software Integration with Delta Lithium Battery BMS
    ▪️ DC Battery Ground Fault Detector
    ▪️ Integrated Battery Switch Cabinet
    ▪️ IR Scan Window

61. ---

62. (1) Upcoming product
    (2) 34-35 pcs require service setting and load derating
63. All specifications are subject to change without prior notice.
