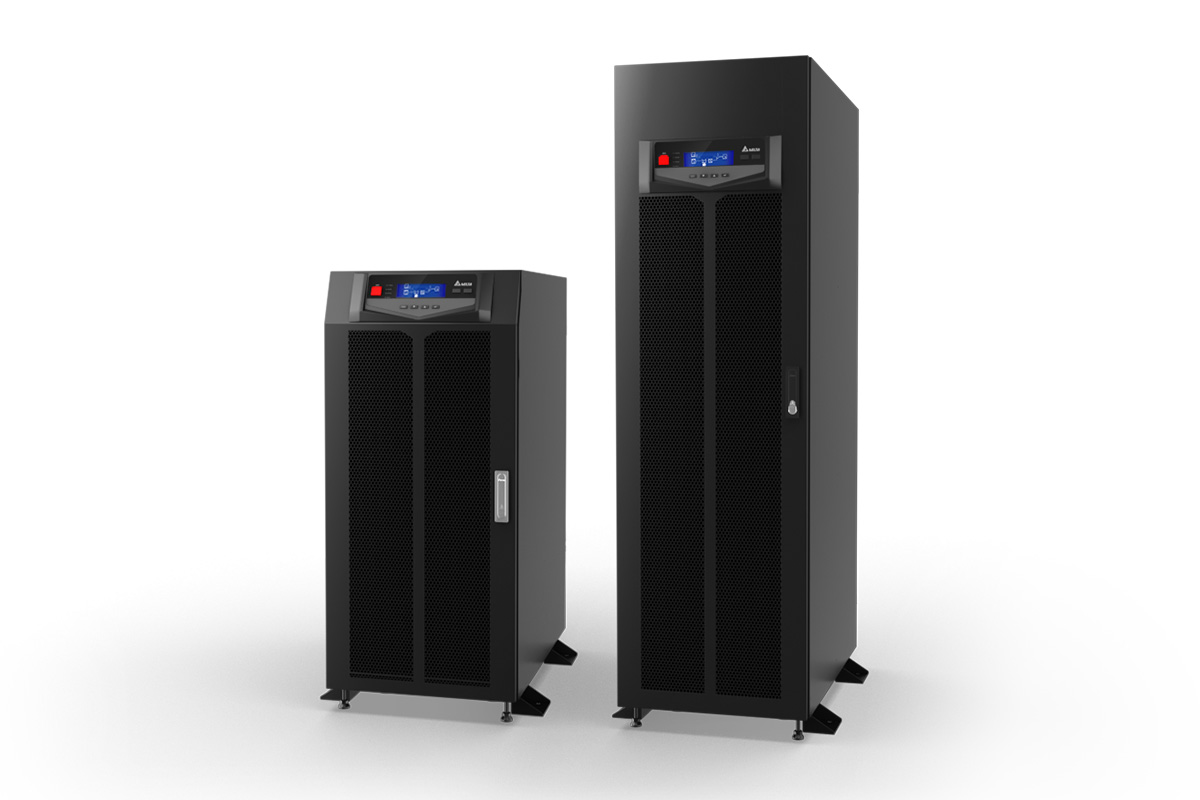

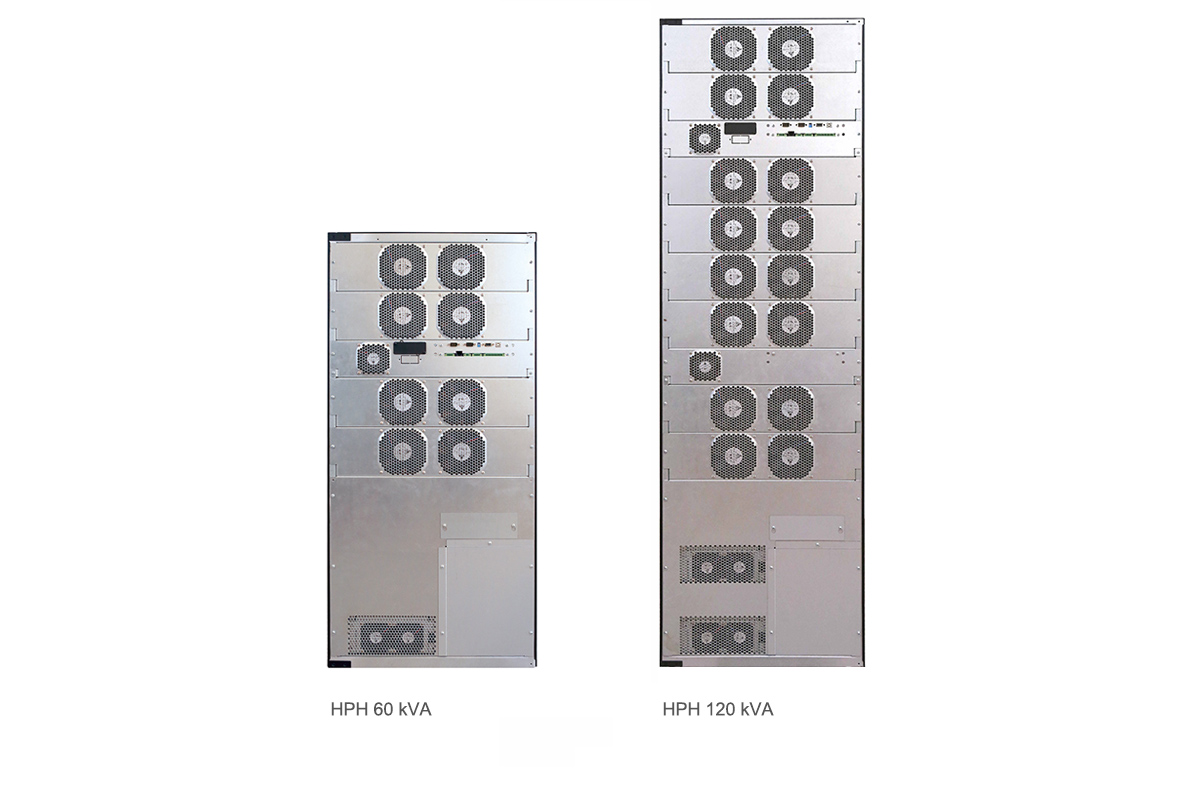

HPH Series 60-120 kVA

Best-in-Class Power Performance and Efficiency

• Fully rated power (kVA=kW) for maximum power availability
• Leading AC-AC efficiency up to 96 % saves energy costs
• Low harmonic pollution (iTHD < 3 %) and high input power factor (> 0.99) reduce upstream investment costs

Assured Reliability

• Wide input voltage range allows the UPS to operate in harsh electrical environments and extends battery life
• DSP based technology enables reduction in the number of electronic components to lower failure rate
• Redundant auxiliary power and static switch control circuit* design prevents single point of failure
  (* Applied for models HPH-100/120K)
• Watch-dog design of dual auxiliary power circuit to eliminate single-point failure to ensure reliability
• Built-in manual bypass ensures continuous power to the load even if the UPS is under maintenance

Greater Flexibility

• A wide choice of configurations, such as N+X redundancy and hot stand-by
• Adjustable charging current and charging voltage meet different battery configuration requirements
• Flexible battery configuration optimizes battery investment

Superior Serviceability and Management

• Swappable interior architecture and front access servicing enables quick and easy maintenance
• Multi-connectivity interface supports remote UPS monitoring and management

1. Model
2. HPH-60K, HPH-80K, HPH-100K, HPH-120K

3. ---

4. Power Rating
5. • HPH-60K: 60 kVA/kW
   • HPH-80K: 80 kVA/kW
   • HPH-100K: 100 kVA/kW
   • HPH-120K: 120 kVA/kW
6. Parallel Configuration: Up to 4 Units

7. ---

8. Input
9. Nominal Voltage: 380/400/415 Vac, 3P4W+PE
10. Voltage Range
    332-477 Vac (full load)
    228-332 Vac (with derating from 63-100% load)
11. Frequency: 40-70 Hz
12. Total Harmonic Distortion (THDi): < 3%
13. Power Factor: > 0.99 (full load)
14. Short Circuit Withstand Rating
    • HPH-60K: 15 A
    • HPH-80K/100K/120K: 22 A

15. ---

16. Output
17. Voltage: 380/ 400/ 415 Vac, 3P4W+PE
18. Voltage Regulation: ± 1%
19. Frequency: 50/60 ± 0.05 Hz
20. Total Harmonic Distortion (THDv): ≤ 2% (Linear Load)
21. Power Factor: 1.0
22. Overload Capability
    ≤ 125%: 10 mins; 126-150%: 1 min; > 150%: 1 sec
23. Current Crest Ratio: 3:1

24. ---

25. Efficiency
26. Online Mode: > 96%
27. ECO Mode: Up to 99%

28. ---

29. Battery
30. Battery Type: VRLA/ Lithium-ion
31. Nominal Voltage: ±240 Vdc
32. Quantity: 32-46 pcs⁽¹⁾
33. Charge Current
    • HPH-60K: 10 A
    • HPHH-80K: 15 A
    • HPH-100K/120K: 20 A
34. Max. Charger Current with Optional Charger Board
    • HPH-60K/80K: 20 A
    • HPH-100K/120K: 40 A

35. ---

36. Communication Interfaces
37. Display: LCD Screen with LED Indicators
38. Port: Smart slot x1, Mini slot x1, Parallel port x2, RS-232 x1, Charger detection port x1, Input dry contact x2, Output dry contact x6, USB x1, REPO port x1, External battery temperature sensing port x2
39. Emergency Power Off: Yes

40. ---

41. Physical
42. Dimensions (W x D x H)
    • HPHH-60K/80K: 520 x 800 x 1175 mm
    • HPH-100K/120K: 520 x 800 x 1760 mm
43. Net Weight
    • HPH-60K: 186.5 kg
    • HPH-80K: 191 kg
    • HPH-100K/120K: 312 kg
44. Packing Dimensions (W x D x H)
    • HPH-60K/80K: 685 x 1003 x 1337 mm
    • HPH-100K/120K: 720 x 994 x 1952 mm
45. Packing Weight
    • HPH-60K: 220.5 kg
    • HPH-80K: 225 kg
    • HPH-100K/120K: 388 kg

46. ---

47. Environment
48. Operating Temperature: 0 to 45˚C⁽²⁾
49. Humidity: 5-95 % (non-condensing)
50. Altitude: 0-1,000 m (without derating)
51. Storage Temperature: -20 to +50 °C
52. Ingress Protection: IP20

53. ---

54. Conformance
55. Safety: CE
56. EMC: IEC 62040-2
57. Performance: IEC 62040-3
58. Sustainability: RoHS, REACH

59. ---

60. Features
61. Backfeed Protection: Standard
62. Cold Start Function: Standard
63. Synchronized Multiple Bus (SMB): Standard
64. Advanced Power Walk-in for Generator: Option
65. Dual Input: Option

66. ---

67. (1) 32-36 pcs require service setting and load derating
    (2) 40 to 45°C with load derating

    All specifications are subject to change without prior notice.
